- Module 16: Distributed System Structures Operating System Concepts – 8th Edition Operating System Concepts – 8th Edition 16.1 Silberschatz, Galvin and Gagne ©2009
- Chapter 16: Distributed System Structures s Motivation s Types of Network-Based Operating Systems s Network Structure s Network Topology s Communication Structure s Communication Protocols s Robustness s Design Issues s An Example: Networking Operating System Concepts – 8th Edition 16.2 Silberschatz, Galvin and Gagne ©2009
- Chapter Objectives s To provide a high-level overview of distributed systems and the networks that interconnect them s To discuss the general structure of distributed operating systems Operating System Concepts – 8th Edition 16.3 Silberschatz, Galvin and Gagne ©2009
- Motivation s Distributed system is collection of loosely coupled processors interconnected by a communications network s Processors variously called nodes, computers, machines, hosts q Site is location of the processor s Reasons for distributed systems q Resource sharing 4 sharing and printing files at remote sites 4 processing information in a distributed database 4 using remote specialized hardware devices q Computation speedup – load sharing q Reliability – detect and recover from site failure, function transfer, reintegrate failed site q Communication – message passing Operating System Concepts – 8th Edition 16.4 Silberschatz, Galvin and Gagne ©2009

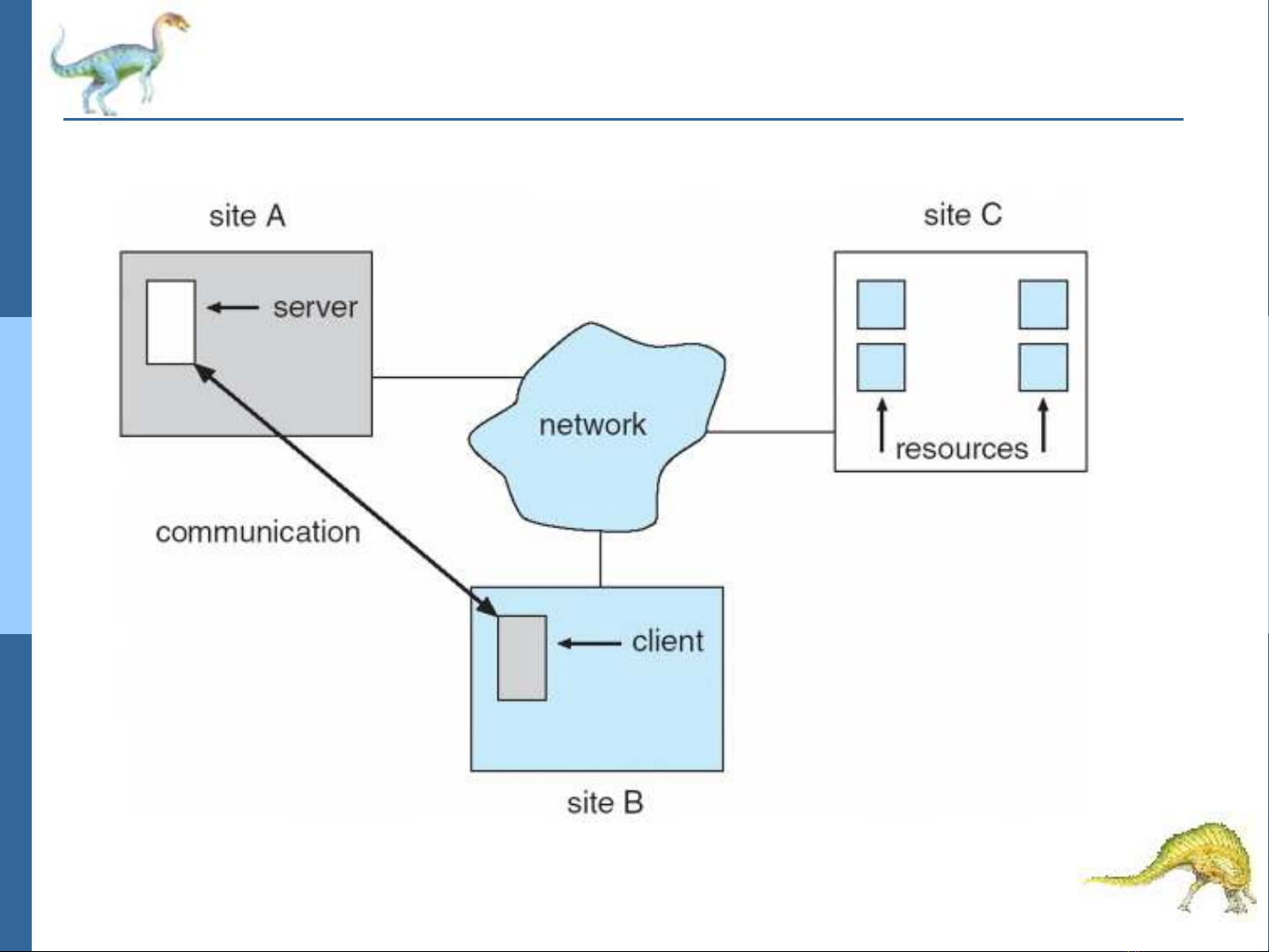

- A Distributed System Operating System Concepts – 8th Edition 16.5 Silberschatz, Galvin and Gagne ©2009
- Types of Distributed Operating Systems s Network Operating Systems s Distributed Operating Systems Operating System Concepts – 8th Edition 16.6 Silberschatz, Galvin and Gagne ©2009
- Network-Operating Systems s Users are aware of multiplicity of machines. Access to resources of various machines is done explicitly by: q Remote logging into the appropriate remote machine (telnet, ssh) q Remote Desktop (Microsoft Windows) q Transferring data from remote machines to local machines, via the File Transfer Protocol (FTP) mechanism Operating System Concepts – 8th Edition 16.7 Silberschatz, Galvin and Gagne ©2009
- Distributed-Operating Systems s Users not aware of multiplicity of machines q Access to remote resources similar to access to local resources s Data Migration – transfer data by transferring entire file, or transferring only those portions of the file necessary for the immediate task s Computation Migration – transfer the computation, rather than the data, across the system Operating System Concepts – 8th Edition 16.8 Silberschatz, Galvin and Gagne ©2009
- Distributed-Operating Systems (Cont.) s Process Migration – execute an entire process, or parts of it, at different sites q Load balancing – distribute processes across network to even the workload q Computation speedup – subprocesses can run concurrently on different sites q Hardware preference – process execution may require specialized processor q Software preference – required software may be available at only a particular site q Data access – run process remotely, rather than transfer all data locally Operating System Concepts – 8th Edition 16.9 Silberschatz, Galvin and Gagne ©2009
- Network Structure s Local-Area Network (LAN) – designed to cover small geographical area. q Multiaccess bus, ring, or star network q Speed 10 – 100 megabits/second q Broadcast is fast and cheap q Nodes: 4 usually workstations and/or personal computers 4 a few (usually one or two) mainframes Operating System Concepts – 8th Edition 16.10 Silberschatz, Galvin and Gagne ©2009
- Depiction of typical LAN Operating System Concepts – 8th Edition 16.11 Silberschatz, Galvin and Gagne ©2009
- Network Types (Cont.) s Wide-Area Network (WAN) – links geographically separated sites q Point-to-point connections over long-haul lines (often leased from a phone company) q Speed 1.544 – 45 megbits/second q Broadcast usually requires multiple messages q Nodes: 4 usually a high percentage of mainframes Operating System Concepts – 8th Edition 16.12 Silberschatz, Galvin and Gagne ©2009
- Communication Processors in a Wide-Area Network Operating System Concepts – 8th Edition 16.13 Silberschatz, Galvin and Gagne ©2009
- Network Topology s Sites in the system can be physically connected in a variety of ways; they are compared with respect to the following criteria: q Installation cost - How expensive is it to link the various sites in the system? q Communication cost - How long does it take to send a message from site A to site B? q Reliability - If a link or a site in the system fails, can the remaining sites still communicate with each other? s The various topologies are depicted as graphs whose nodes correspond to sites q An edge from node A to node B corresponds to a direct connection between the two sites s The following six items depict various network topologies Operating System Concepts – 8th Edition 16.14 Silberschatz, Galvin and Gagne ©2009
- Network Topology Operating System Concepts – 8th Edition 16.15 Silberschatz, Galvin and Gagne ©2009
- Communication Structure The design of a communication network must address four basic issues: s Naming and name resolution - How do two processes locate each other to communicate? s Routing strategies - How are messages sent through the network? s Connection strategies - How do two processes send a sequence of messages? s Contention - The network is a shared resource, so how do we resolve conflicting demands for its use? Operating System Concepts – 8th Edition 16.16 Silberschatz, Galvin and Gagne ©2009
- Naming and Name Resolution s Name systems in the network s Address messages with the process-id s Identify processes on remote systems by pair s Domain name service (DNS) – specifies the naming structure of the hosts, as well as name to address resolution (Internet) Operating System Concepts – 8th Edition 16.17 Silberschatz, Galvin and Gagne ©2009
- Routing Strategies s Fixed routing - A path from A to B is specified in advance; path changes only if a hardware failure disables it q Since the shortest path is usually chosen, communication costs are minimized q Fixed routing cannot adapt to load changes q Ensures that messages will be delivered in the order in which they were sent s Virtual circuit - A path from A to B is fixed for the duration of one session. Different sessions involving messages from A to B may have different paths q Partial remedy to adapting to load changes q Ensures that messages will be delivered in the order in which they were sent Operating System Concepts – 8th Edition 16.18 Silberschatz, Galvin and Gagne ©2009
- Routing Strategies (Cont.) s Dynamic routing - The path used to send a message form site A to site B is chosen only when a message is sent q Usually a site sends a message to another site on the link least used at that particular time q Adapts to load changes by avoiding routing messages on heavily used path q Messages may arrive out of order 4 This problem can be remedied by appending a sequence number to each message Operating System Concepts – 8th Edition 16.19 Silberschatz, Galvin and Gagne ©2009
- Connection Strategies s Circuit switching - A permanent physical link is established for the duration of the communication (i.e., telephone system) s Message switching - A temporary link is established for the duration of one message transfer (i.e., post-office mailing system) s Packet switching - Messages of variable length are divided into fixed-length packets which are sent to the destination q Each packet may take a different path through the network q The packets must be reassembled into messages as they arrive s Circuit switching requires setup time, but incurs less overhead for shipping each message, and may waste network bandwidth q Message and packet switching require less setup time, but incur more overhead per message Operating System Concepts – 8th Edition 16.20 Silberschatz, Galvin and Gagne ©2009
