BỘ GIÁO DỤC VÀ ĐÀO TẠO
TRƯỜNG ĐẠI HỌC BÁCH KHOA HÀ NỘI
VẼ KỸ THUẬT CƠ KHÍ
BÀI 1: CÁC MỐI GHÉP
BÀI 1: CÁC MỐI GHÉP
BÀI 1: CÁC MỐI GHÉP
BÀI 1: CÁC MỐI GHÉP
•Các chi tiết máy được lắp nối
với nhau thành các bộ phận máy
là nhờ các mối ghép.
•Có hai loại mối ghép:

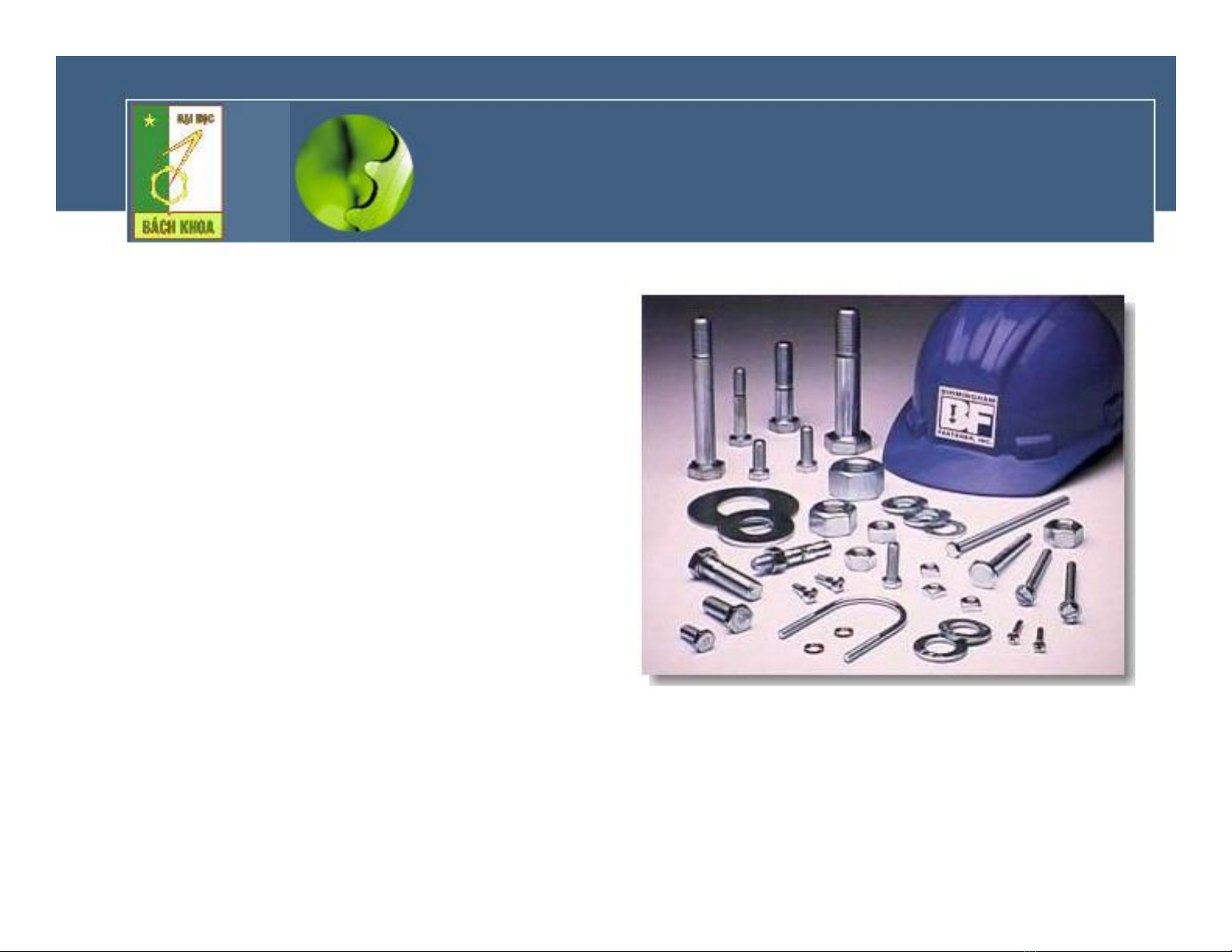

–Mối ghép tháo được: mối
ghép bằng ren, then, chốt…
–Mối ghép không tháo được:
mối hàn, dán, đinh tán …
