Bài 4: CÁC KHỐI
3D CƠ BẢN
1
MỤC TIÊU BÀI HỌC:
2
- Nhận biết các khối 3D trong nhóm Standard Primittives và
nhóm Extender Primittives
- Sử dụng các khối 3D trong nhóm Standard Primittives và
nhóm Extender Primittives để vẽ hình theo mẫu.
- Đảm bảo an toàn người và thiết bị
NỘI DUNG:
3
4.1.Nhóm Standard Primittives
4.2.Nhóm Extender Primittives
Nhóm Standard Primittives
4
Các khối hình học nguyên sinh (chuẩn)

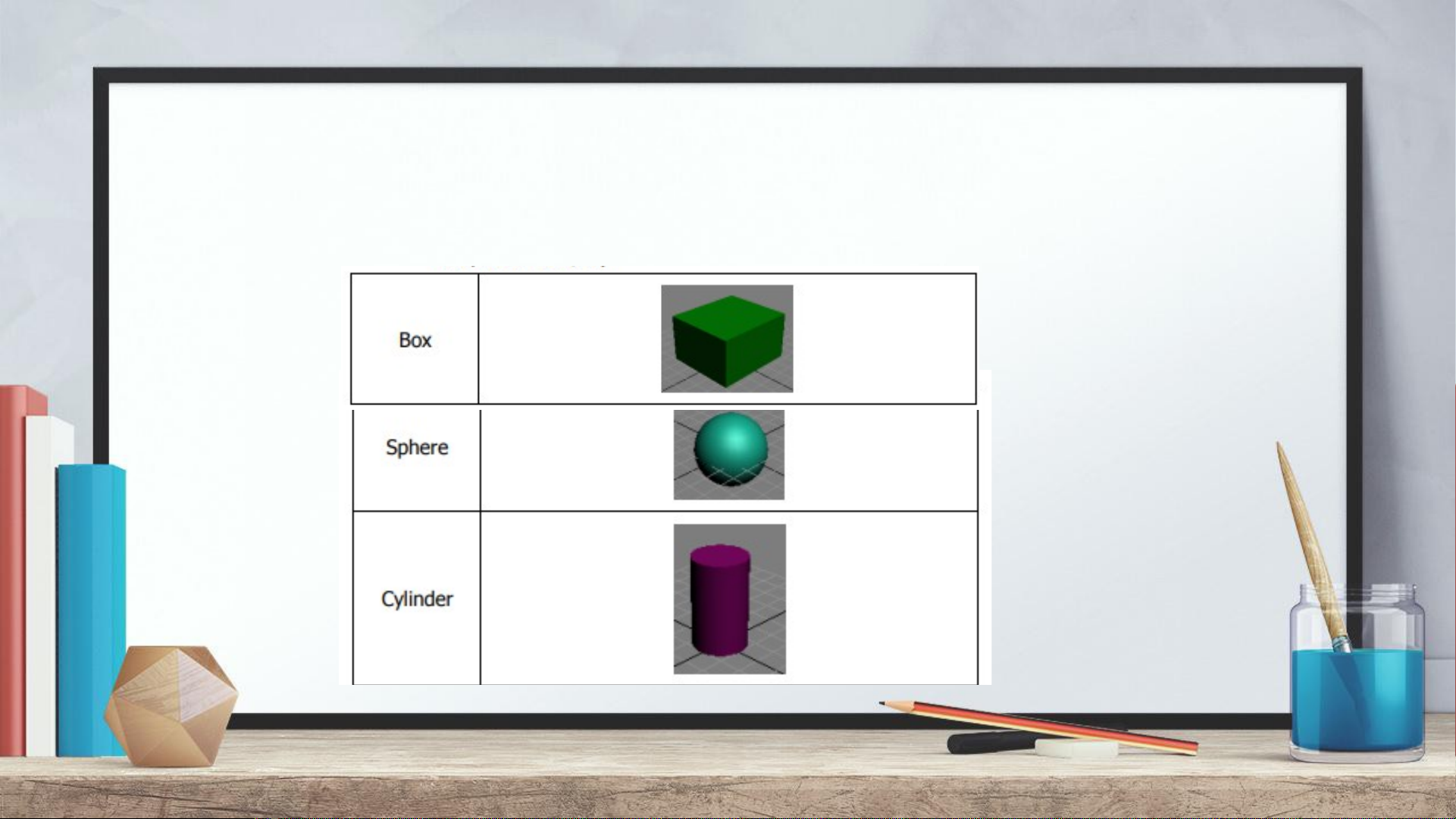

Nhóm Standard Primittives
5
Các khối hình học nguyên sinh (chuẩn)
