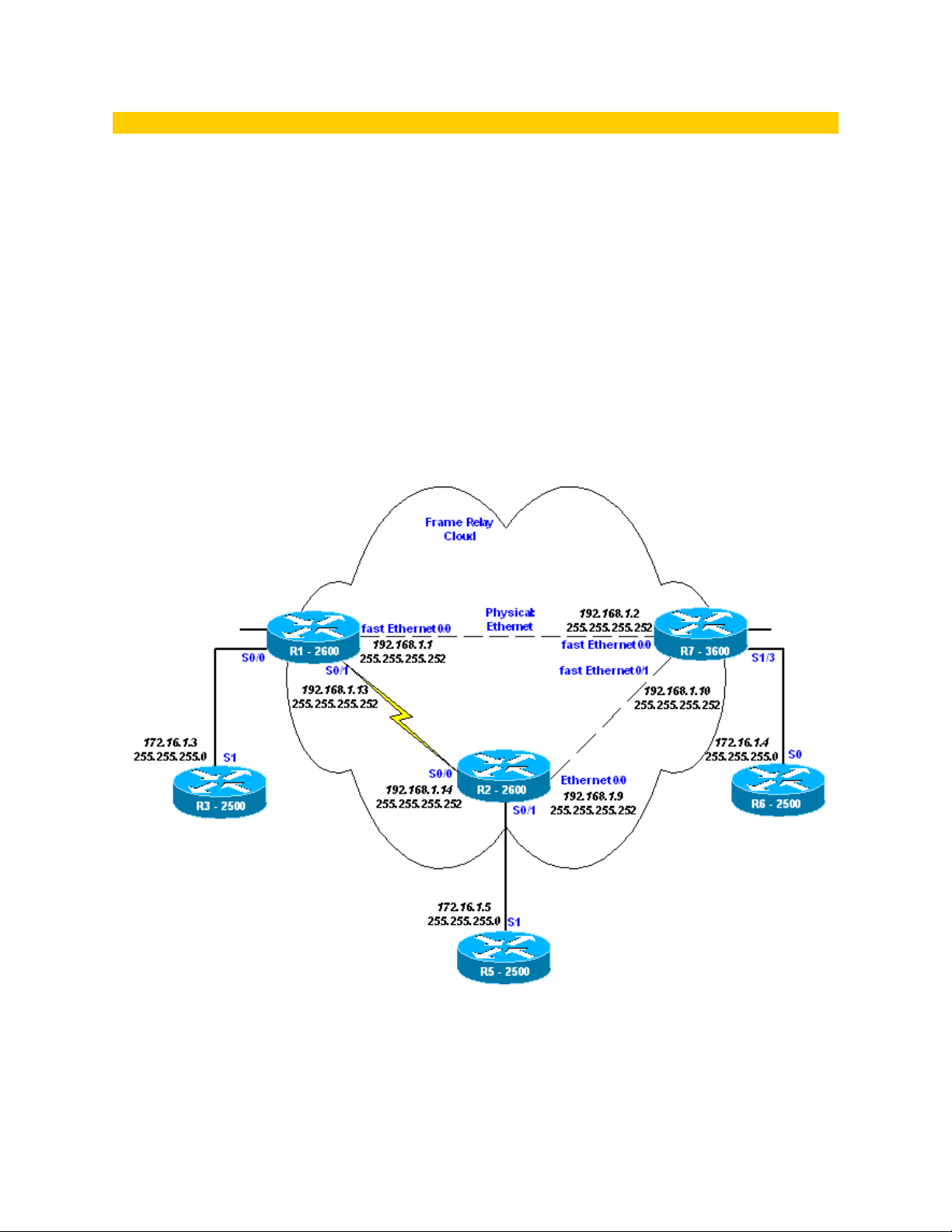

Bài viết FR with Tunnel Tác giả: Đăng Quang Minh ̣ CONFIGURATION DOCUMENT A. LAB DIAGRAM B. CONFIGURATION
===================================================================== Configuration on Router R1 : ===================================================================== Current configuration : 1060 bytes ! version 12.2 service timestamps debug uptime service timestamps log uptime no service password-encryption ! hostname R1 ! frame-relay switching ! ! interface Tunnel0 ip address 192.168.1.5 255.255.255.252 tunnel source FastEthernet0/0 tunnel destination 192.168.1.2 ! interface Tunnel2 ip address 192.168.1.22 255.255.255.252 tunnel source Serial0/1 tunnel destination 192.168.1.14
! interface FastEthernet0/0 ip address 192.168.1.1 255.255.255.252 duplex auto speed auto ! interface Serial0/0 no ip address encapsulation frame-relay no fair-queue clockrate 64000 frame-relay intf-type dce frame-relay route 16 interface Tunnel0 16 frame-relay route 17 interface Tunnel2 17 ! interface Serial0/1 ip address 192.168.1.13 255.255.255.252 ! ip classless ip http server ! line con 0 line aux 0 line vty 0 4
login ! end ==================================================================== Configuration on Router R2: ==================================================================== Current configuration: ! version 12.0 service timestamps debug uptime service timestamps log uptime no service password-encryption ! hostname R2 ! ! ip subnet-zero frame-relay switching ! interface Tunnel1 ip address 192.168.1.18 255.255.255.252 no ip directed-broadcast
tunnel source Ethernet0/0 tunnel destination 192.168.1.10 ! interface Tunnel2 ip address 192.168.1.21 255.255.255.252 no ip directed-broadcast tunnel source Serial0/0 tunnel destination 192.168.1.13 ! interface Ethernet0/0 ip address 192.168.1.9 255.255.255.252 no ip directed-broadcast ! interface Serial0/0 ip address 192.168.1.14 255.255.255.252 no ip directed-broadcast no ip mroute-cache no fair-queue clockrate 64000 ! interface Serial0/1 no ip address no ip directed-broadcast encapsulation frame-relay
logging event subif-link-status logging event dlci-status-change clockrate 64000 frame-relay intf-type dce frame-relay route 17 interface Tunnel2 17 frame-relay route 18 interface Tunnel1 18 ! ip classless ! line con 0 transport input none line aux 0 line vty 0 4 login ! no scheduler allocate end ======================================================================== Configuration on Router R7: ======================================================================== Building configuration... Current configuration : 1747 bytes !
version 12.2 service timestamps debug uptime service timestamps log uptime no service password-encryption ! hostname R7-3600 ! enable password cisco ! frame-relay switching ! call rsvp-sync ! ! interface Tunnel0 ip address 192.168.1.6 255.255.255.252 tunnel source FastEthernet0/0 tunnel destination 192.168.1.1 ! interface Tunnel1 ip address 192.168.1.17 255.255.255.252 tunnel source FastEthernet0/1 tunnel destination 192.168.1.9 !
interface FastEthernet0/0 ip address 192.168.1.2 255.255.255.252 duplex auto speed auto ! interface FastEthernet0/1 ip address 192.168.1.10 255.255.255.252 duplex auto speed auto ! interface Serial1/3 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 16 interface Tunnel0 16 frame-relay route 18 interface Tunnel1 18 ! ! line con 0 line aux 0 line vty 0 4 password cisco login
! end ================================================================ Configuration on R3: ================================================================ Building configuration... Current configuration: ! version 12.0 service timestamps debug uptime service timestamps log uptime no service password-encryption ! hostname R3 ! ! ip subnet-zero ! interface Serial1 ip address 172.16.1.3 255.255.255.0 no ip directed-broadcast encapsulation frame-relay
logging event subif-link-status logging event dlci-status-change ! ip classless ! line con 0 logging synchronous transport input none line aux 0 line vty 0 4 login ! end ================================================================ Configuration on R5: ================================================================ Building configuration... Current configuration: ! version 12.0 service timestamps debug uptime service timestamps log uptime no service password-encryption
! hostname R5 ! ip subnet-zero ! interface Serial1 ip address 172.16.1.5 255.255.255.0 no ip directed-broadcast encapsulation frame-relay logging event subif-link-status logging event dlci-status-change ! ip classless ! ! line con 0 transport input none line aux 0 line vty 0 4 login ! end ================================================================
Configuration on R6: ================================================================ Building configuration... Current configuration: ! version 12.0 service timestamps debug uptime service timestamps log uptime no service password-encryption ! hostname R6 ! ! ip subnet-zero ! interface Serial0 ip address 172.16.1.4 255.255.255.0 no ip directed-broadcast encapsulation frame-relay no ip mroute-cache logging event subif-link-status logging event dlci-status-change no fair-queue
! interface Serial1 no ip address no ip directed-broadcast shutdown ! ip classless ! line con 0 logging synchronous transport input none line aux 0 line vty 0 4 login ! end
