PREFACE
1. The necessity of the thesis
Publications on vibration of the beams are most relevant to FGM beams
with material properties varying in one spatial direction only, such as the
thickness or longitudinal direction. There are practical circumstances,
in which the unidirectional FGMs may not be so appropriate to resist
multi-directional variations of thermal and mechanical loadings. Optimiz-
ing durability and structural weight by changing the volume fraction of
FGM’s component materials in many different spatial directions is a mat-
ter of practical significance, being scientifically recognized by the world’s
scientists, especially Japanese researchers in recent years. Thus, struc-
tural analysis with effective material properties varying in many different
directions in general and the vibration of FGM beams with effective mate-
rial properties varying in both the thickness and longitudinal directions of
beams (2D-FGM beams) in particular, has scientific significance, derived
from the actual needs. It should be noted that when the material properties
of the 2D-FGM beam vary in longitudinal direction, the coefficients in the
differential equation of beam motion are functions of spatial coordinates
along the beam axis. Therefore analytical methods are getting difficult to
analyze vibration of the 2D-FGM beam. Finite element method (FEM),
with many strengths in structural analysis, is the first choice to replace
traditional analytical methods in studying this problem. Developing the
finite element models, that means setting up the stiffness and mass ma-
trices, used in the analysis of vibrations of the 2D-FGM beam is a mat-
ter of scientific significance, contributing to promoting the application of
FGM materials into practice. From the above analysis, author has selected
the topic: Finite element models in vibration analysis of two-dimensional
functionally graded beams as the research topic for this thesis.
2. Thesis objective
This thesis aims to develop finite element models for studying vibra-
tion of the 2D-FGM beam. These models require high reliability, good
convergence speed and be able to evaluate the influence of material pa-
rameters, geometric parameters as well as being able to simulate the effect
of shear deformation on vibration characteristics and dynamic responses
of the 2D-FGM beam.
3. Content of the thesis
2
Four main research contents are presented in four chapters of the the-
sis. Specifically, Chapter 1 presents an overview of domestic and for-
eign studies on the 1D and 2D-FGM beam structures. Chapter 2 pro-
poses mathematical model and mechanical characteristics for the 2D-
FGM beam. The equations for mathematical modeling are obtained based
on two kinds of shear deformation theories, namely the first shear de-
formation theory and the improved third-order shear deformation theory.
Chapter 3 presents the construction of FEM models based on different
beam theories and interpolation functions. Chapter 4 illustrates the nu-
merical results obtained from the analysis of specific problems.
Chapter 1. OVERVIEW
This chapter presents an overview of domestic and foreign regime of re-
searches on the analysis of FGM beams. The analytical results are dis-
cussed on the basis of two research methods: analytic method and nu-
merical method. The analysis of the overview shows that the numerical
method in which FEM method is necessary is to replace traditional ana-
lytical methods in analyzing 2D-FGM structure in general and vibration
of the 2D-FGM beam in particular. Based on the overall evaluation, the
thesis has selected the research topic and proposed research issues in de-
tails.
Chapter 2. GOVERNING EQUATIONS
This chapter presents mathematical model and mechanical characteris-
tics for the 2D-FGM beam. The basic equations of beams are set up based
on two kinds of shear deformation theories, namely the first shear defor-
mation theory (FSDT) and the improved third-order shear deformation
theory (ITSDT) proposed by Shi [40]. In particular, according to ITSDT,
basic equations are built based on two representations, using the cross-
sectional rotation
θ
or the transverse shear rotation
γ
0as an independent
function. The effect of temperature and the change of the cross-section
are also considered in the equations.
2.1. The 2D-FGM beam model
The beam is assumed to be formed from four distinct constituent mate-
rials, two ceramics (referred to as ceramic1-C1 and ceramic2-C2) and two
metals (referred to as metal1-M1 and metal2-M2) whose volume fraction
3
varies in both the thickness and longitudinal directions as follows:
VC1 =z
h+1
2nzh1−x
Lnxi
VC2 =z
h+1
2nzx
Lnx
VM1 =1−z
h+1
2nzh1−x
Lnxi
VM2 =1−z
h+1
2nzx
Lnx
(2.1)

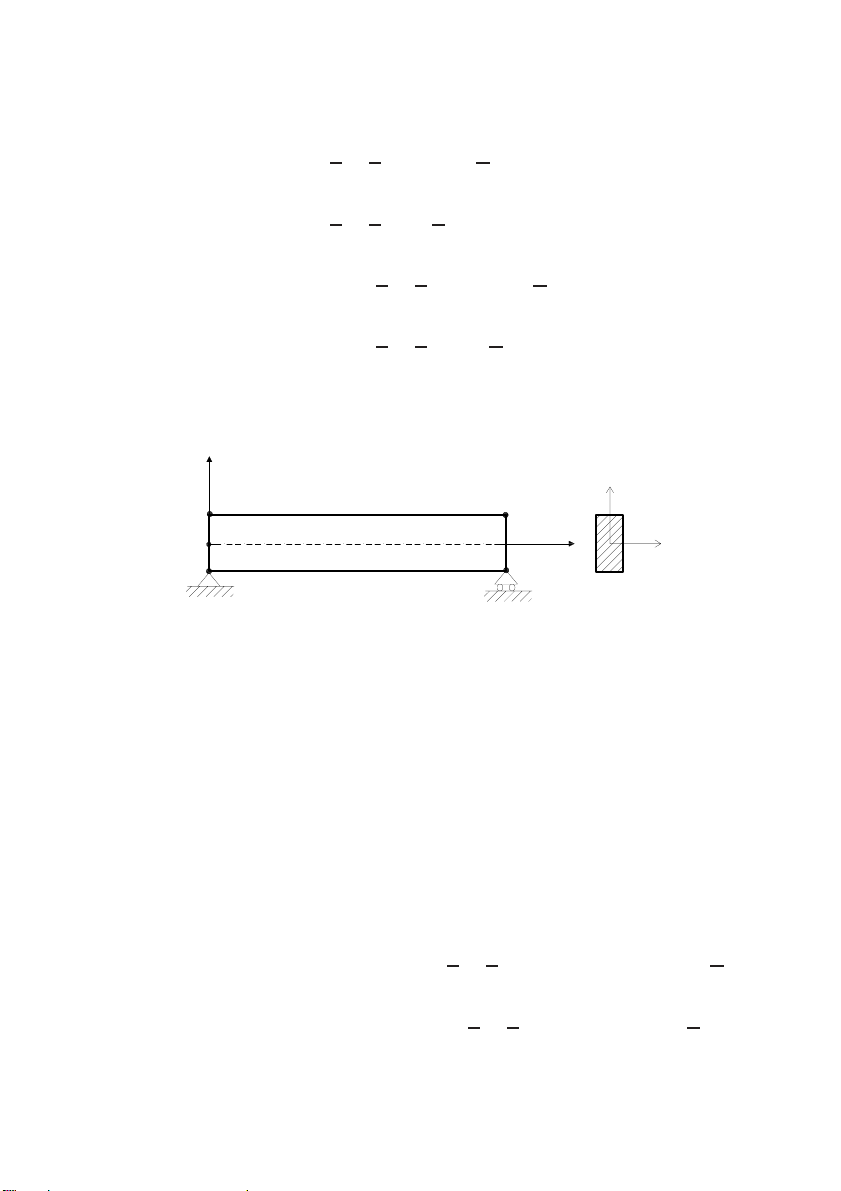

Fig. 2.1 illustrates the 2D-FGM beam in Cartesian coordinate system
(Oxyz).
C1
0
M1
L, b, h
Z
C2
M2
X
h
b
y
z
Fig. 2.1. The 2D-FGM beam model
In this thesis, the effective material properties P(such as Youngs
modulus, shear modulus, mass density, etc.) for the beam are evaluated
by the Voigt model as:
P=VC1PC1 +VC2PC2 +VM1PM1 +VM2PM2 (2.2)
When the beam is in thermal environment, the effective properties of
beams depend not only on the properties of the component materials but
also on the ambient temperature. Then, one can write the expression for
the effective properties of the beam exactly as follows:
P(x,z,T) =hPC1(T)−PM1(T)iz
h+1
2nz
+PM1(T)h1−x
Lnxi
+hPC2(T)−PM2(T)iz
h+1
2nz
+PM2(T)x
Lnx
(2.4)
